Help pages for the Lenz 21010 LH01 Handset

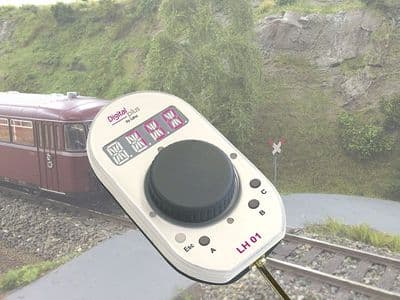

1.1 First Drive with the new LH011.1 First Drive with the new LH01
1.2 Locomotive decoder functions - Lights, Sound, and more...1.2 Locomotive decoder functions - Lights, Sound, and more...

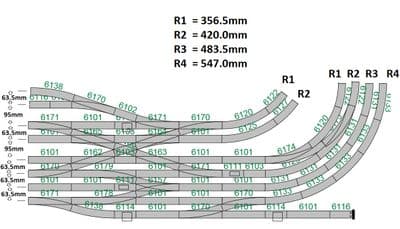

2.1  Switching Points and accessories2.1 Switching Points and accessories

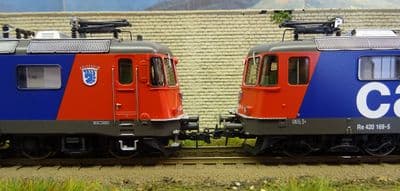

3.1 Multitraction - Combining locos to form a double head3.1 Multitraction - Combining locos to form a double head
4.1 Programming on Main (POM)4.1 Programming on Main (POM)
5.1 RailCom and Programming on Main with LH015.1 RailCom and Programming on Main with LH01

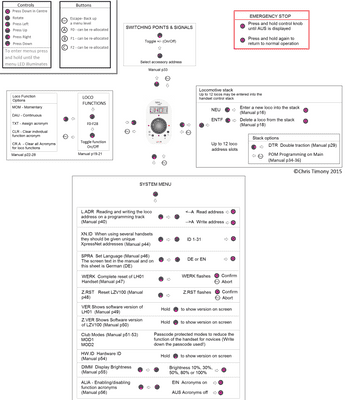

LH01 Menu StructureLH01 Menu Structure

ImageCodeNameDescriptionPriceQty
21010 Handset LH01
LENZ2101021010 Handset LH01

Lenz  21010 Hand controller LH01


LH01 Help Pages

Link to English Manual

This is Lenz' new entry level XpressNet Handset. The LH01 will work  with LZV100 command station on Version 3.6. The design is minimalistic in order to give the greatest functionality for the least price.
The LH01 Handset has a 4 digit display and one large control knob that works like a games consol control or a system control in a prestige car - the rotary knob can also be pressed in four directions and pressed in the middle so that you can enter the menues.  In this way Lenz can offer a high specification for a low price:

  • For up to 9999 digital motor vehicles
  • Setting of 4-digit locomotive addresses on Read and Write Programming track
  • 28 speed steps
  • 29 functions for each locomotive
  • Functions can be continuous or momentary by button press
  • RailCom enabled programming in operational mode (PoM).  Standard POM can also be performed on decoders without RailCom
  • Double traction
  • connect up to 31 input devices to our universal input bus XpressNet.
  • points, signals and other magnetic articles can be switched.
  • Protected against short-circuit and overheat.
£89.75
