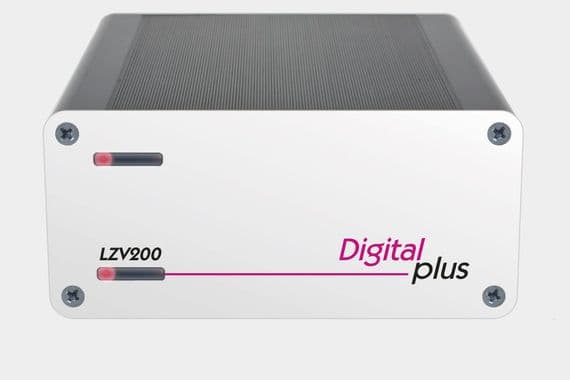

Lenz 20200 LZV200 Command station incl. 5Amp output
Lessons learnt from 25 years of the LZV100 and with Prototypes of the new LZV200 have resulted in some new features
- Update by USB memory stick - unit no longer has to be sent off for upgrading
- Integrated computer interface
- Adjustable Track voltage and maximum current
- Global RailCom detector
- CVs can now be read during operation, not just on the programming track - (RailCom enabled decoders and LRC120 display are needed for this)
- Internal Memory battery is now replaceable - CR2450
The future new features and functions are shown in red
Updates: can be done easily with a USB memory stick.
Locomotive: 9,999 addresses for digital locomotives.
Locomotive and configuration: up to 29 functions are available per address.
69 Functions available using the new generation LH101 and LH101-R (Version 2.1)
For functions 1 to 28, you can set separately whether it is a switched or a momentary function.
This setting is saved to each loco address.
Driving stages: The driving stage modes 28 and 128 are supported. The drive step mode can be set separately for each address.
Double and Traction (MTR): Two or more locomotives can be combined and controlled together. In order to manage the MTR, the LZV200 has an internal database, in which each address is entered, whether and if so, in which MTR the relevant address is integrated. This database can be queried and modified by XpressNet handsets and devices.
RailCom: The built-in global RailCom detector will allow the RAILCOM data of all locomotives located in the supply area of the LZV200 to be received. From other supply areas (e.g. LV102), the RAILCOM data is forwarded to the LZV200 with the RailCom transmitter and can be processed there.
Programming during Operation (POM): You program the properties of a decoder while the locomotive is somewhere on the system. For example, drive Your locomotive in front of a heavy freight train and adjust the driving delay to the train!
The content of CVs can also be read out and displayed via the built-in global RailCom detector (if the addressed decoder is able to do so).
Programming on the program track: all 3 programming variants according to NMRA are available with the LZV200: Programming with specification of CV, register programming and page mode.
Magnetic Articles: The address range for magnetic articles (turnouts, signals) we have expanded to 1 to 2048. Point feedback is possible in the range from 1 to 256.
Auto mode: This mode ensures that after switching on your system, the locomotives are restored with the stored data. If this mode is switched on, the driving commands are saved for the above locomotive and sent after switching on. The information of functions F0 to F4 is also sent.
XpressNet: The XpressNet connection is used to establish communication with the input devices. The automatic forwarding of messages of reconfirmable components via XPRESSNET to connected devices means an extremely fast feedback the LZV200 supports XpressNet devices from version 3 onwards.
Output current: The output current of the built-in amplifier is limited to a maximum of 5a. Voltage and maximum current are adjustable.
Protective functions: Thermal overload protection and external voltage protection.
Computer connection: The LZV200 is prepared for computer connection
