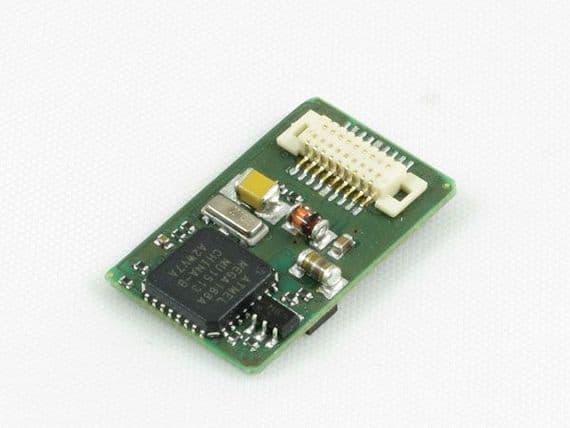

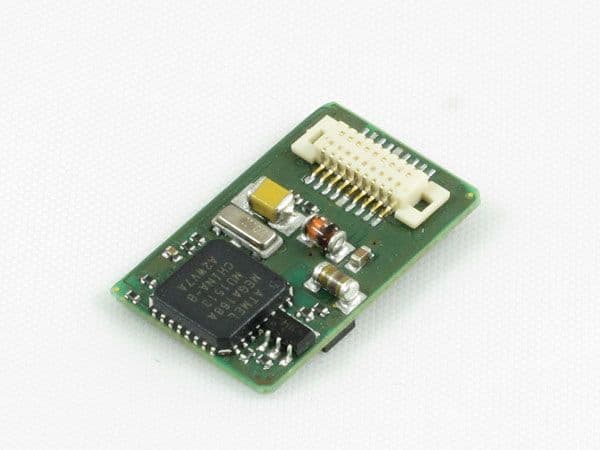

Lenz 10318-01 Silver Next18


The Lenz Digital Plus Silver locomotive decoder is suitable for all DC Locos with Next18 interface (NEM662).

Click here for an explanation of Next18 connections

The characteristics of the decoder are:

• Super smooth and silent high frequency back emf motor control
• Supports Automatic Braking Control (ABC)
• Shunting speed on F3
• Suitable for operation with 14/27 or 28/128 speed steps
• Operation on conventional DC layouts is posible or may be disabled
• Motor and function outputs have short circuit protection
• Seven function outputs rated at 500mA each with advanced function mapping
• Directional or independent lighting with dimming and special effects
• Support for Multiple traction and long addresses (Loco addresses up to 9,999)
• Support for programming on the mainline (Programming on Main POM)
• Support for all forms of programming as described in NMRA RP-9.2.3
• RailCom
